Matrix

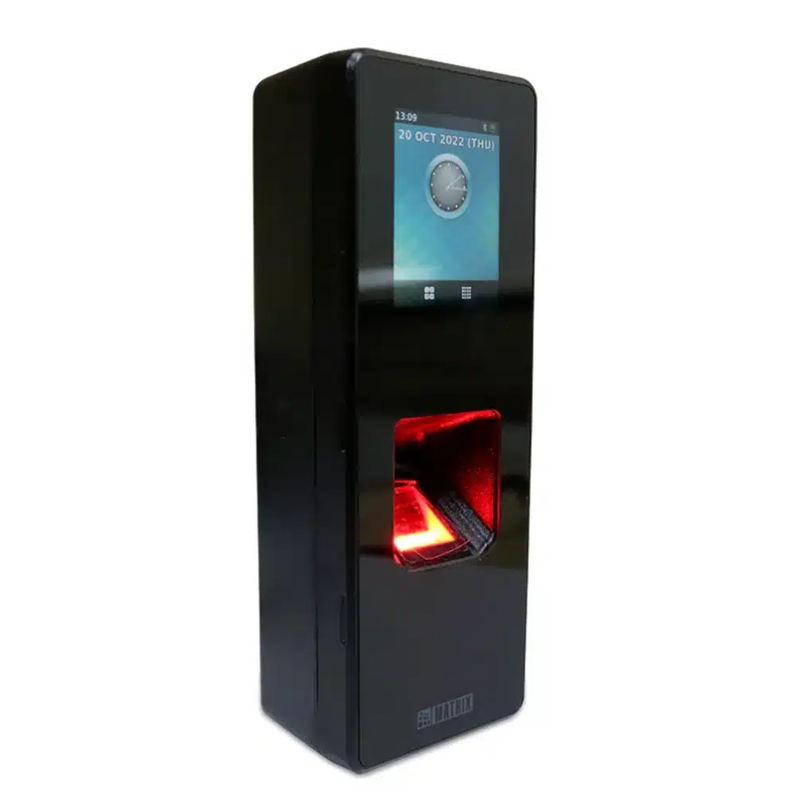

COSEC ATOM Fingerprint and Mifare Card based Access Control Reader with Touch Screen
SKU: COSEC ATOM RD300SFM
Select required product from options below:
Card Support: Mi Fare
About Product
The Matrix COSEC ATOM RD300 Series combines advanced fingerprint recognition and smart card technology with a sleek 2” touch screen display for fast, secure, and user-friendly access control. The COSEC ATOM RD300SFE supports EM Prox cards, the RD300SFM supports Mifare cards for secure data transmission and the RD300SFI offers complete flexibility with HID iCLASS, HID Prox, Mifare (CSN Read) and EM Prox compatibility. Supporting 25,000 fingerprint templates, BLE mobile access and multiple interface options (RS-232/RS-485/Wiegand), the RD300 Series delivers a modern, high-performance solution for enterprise-grade access control systems.
Key Specs
- BLE: Yes
- PoE: -
- USB: -
- Wi-Fi: Yes (802.11 b/g/n)
- RS-232: Yes (Compatible with COSEC ARGO, COSEC VEGA, COSEC PATH V2)
- Display: 2” Touch screen Display
- Wiegand: Yes
- 3G/4G/LTE: -
- RF Option: Mifare Classic/Desfire EV1 /combo cards/ NFC Tag
- Display Size: 320 x 240 Pixel
- Event Buffer: -
- Cards Per User: -
- Face Templates: NA
- Door Lock Power: -
- Door Lock Relay: -
- Door Status Sense: -
- Credential Support: Fingerprint, BLE, PIN and Card
- Templates per User: -
- Exit Switch/Exit Reader: -
- Max.Finger Template Storage: 25,000
Or
Product Specifications
General
Credential Support
Fingerprint, BLE, PIN and Card
RF Option
Mifare Classic/Desfire EV1 /combo cards/ NFC Tag
IP Rating
-
Capacity
Max.Users
-
Face Templates
NA
Max.Finger Template Storage
25,000
Event Buffer
-
Templates per User
-
Cards Per User
-
FACE RECOGNITION
Algorithm
NA
Fake Face Detection
NA
Face Identification
NA
Face Enrolment
NA
Communication
Ethernet
-
PoE
-
RS-232
Yes (Compatible with COSEC ARGO, COSEC VEGA, COSEC PATH V2)
Wi-Fi
Yes (802.11 b/g/n)
BLE
Yes
Mobile Broadband
-
3G/4G/LTE
-
Wiegand
Yes
USB
-
Interface
Exit Switch/Exit Reader
-
Door Status Sense
-
Door Lock Relay
-
Door Lock Power
-
Aux-In
-
Aux-Out
-
HARDWARE
CPU
AM3352
Memory
-
Display
2” Touch screen Display
Display Size
320 x 240 Pixel
LED
No
Buzzer
Yes (12V Magnetic buzzer)
Keypad
-
Operating Temperature
-20°C to + 55 °C
Humidity
5% to 95 % RH Non-Condensing
Tamper Detection
Yes
Power
-
Dimension(W x H x D)
153mm X 56 mm X 37mm
Weight
330grms
Compatibility
System Integration
-
Operational Modes
-
Sensor
Sensor Name
SFM6030-OC6
Sensor Technology
Optical
Encryption
-
Waterproof
-
False Acceptance Ratio (FAR)
-
False Rejection Ratio (FRR)
-
Resolution(dpi)
500 DPI
Sensing Area
16.0mm X 18.0mm
Template Size
-
image Size(Pixel)
-
Applications Support
Access Control
-
Time-Attendance
-
Visitor Management
-
Contract Worker's Management
-
Cafetaria Management
-
Job Processing & Costing
-
